Write an instruction followWallRight
for the MazeWalker
class, assuming that whenever a robot executes this instruction there is a wall directly to the right. It should be able to handle these four possible situations:

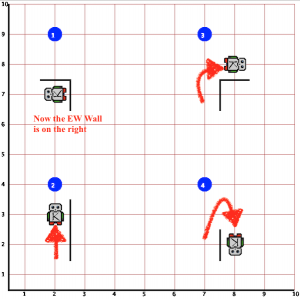

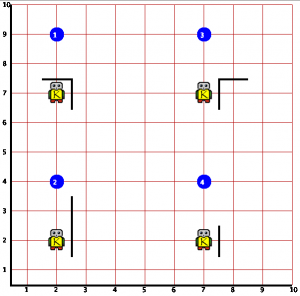

Before
After
Here are four of the different position changes that the robot must be able to make. This instruction is the cornerstone for the program that directs a robot to escape from a maze. It isn't the most efficient algorithm, and it won't work on mazes that have islands (Can you imagine why?). Do you think following the left walls would be better?
import kareltherobot.*; public class MazeWalker extends Robot { public MazeWalker(int street, int avenue, Direction direction, int beepers) { super(street, avenue, direction, beepers); } /** * This is an algorithm to run a maze. It isn't the fastest method, * and won't work if the maze has any islands (Can you imagine why?) * Would it be better to follow the leftWalls? */ public void escapeMaze() { while (! nextToABeeper() ) followRightWall(); } /** * This will move the Robot according to the diagram * mentioned. */ public void followRightWall() { } public void turnRight() { for (int i=0; i<3; i++) turnLeft(); } }
First use the MazeWalkerTester
to see if your code deals with the four situations correctly.
Once the tester shows that the four cases are handled correctly, here is a maze runner class with its own maze:
